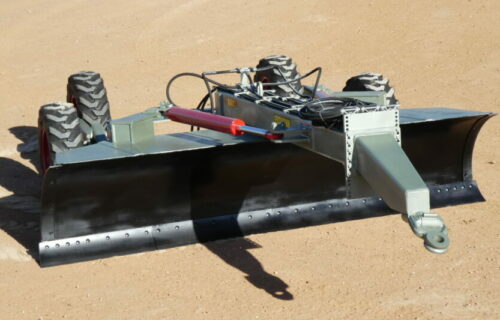

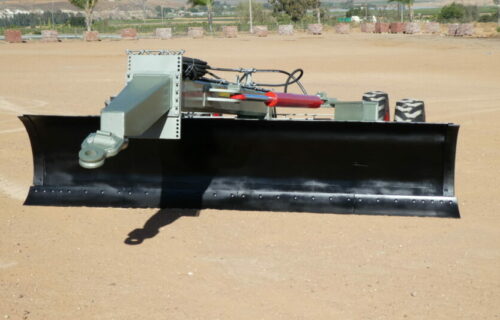

Grader Trailed Industrial 3.8m 4300kg- G67

Grader Trailed Industrial 3.8m 4300kg- G67

The G67 heavy duty Industrial Grader blade width is 3.8 meters and the weight varies from 4300 kg to 4500 kg. Tractor requirement is 80 to 200 kW for ruff conditions and for high duty cycles.  The Erdvark G67 is an ideal Tractor Trailed Grader for municipalities to do maintenance of dirt roads. The Erdvark G67 Grader is more robust than G60 model and can handle ruff industrial conditions. This is an Ideal Grader for maintenance and building of roads, contours, landing strips and is ideal for making new and maintaining fire breaks. This Grader will be ideal for Farmers groups that needs to rebuild their National dirt roads as the Provincial departments don’t do any work anymore.  The Grader can also dig trenches and level irrigation fields. The Erdvark G67 Grader is full hydraulic or hydraulic and mechanical operated.

Erdvark overcomes the toughest grading conditions.

The Erdvark G67 Grader with its heavy blade case design ensures that blade penetration is effective on tough surfaces.
The cutting angles of the blade can be hydraulically or mechanical adjusted from the tractor seat. The controls are easy to operate and the operator does not have to spend hours optimizing the performance of the Grader.
The road camber and trenching adjustments can be done hydraulically by using the levers on the control system.
Cutting edges are easily replaceable, when cutting contours only the cutting side of the blade’s that are warn, can be replaced when needed.
Heavy duty hydraulic cylinders with spherical end connections to handle tuff conditions.
Erdvark manufacture Graders to suit you tractor and grading conditions.
Manufactured in South Africa for tuff African conditions.

G67A – Four pipes to tractor, use tractor 2 lever hydraulic system to operate Grader. The one lever operates the LH and the second lever operates the RH of the Grader. For adjusting blade angle let one corner down and raise the other one. Pull rope and drive forward until preferred angle and release the rope.

G67B – Identical to G57A except a 2 lever control valve is fitted to the pipes of the Grader that must be mounted on tractor at hook-up and Grader control is done from this 2 lever control valve. Only 2 pipes go now to the tractor 1 lever hydraulic system, this control must be locked in open position to give priority to 2 lever Grader control valve to operate Grader.

G67C – Six pipes to tractor, use tractor3 lever hydraulic system to operate Grader. Levers 1 & 2 are for LH & RH and 3rd lever to adjust grading angle.

G67D – Two pipes to tractor with 2 lever control valve mounted on Grader with seat and seat belt for the operator. The blade angle adjustment is the same as G67A Grader. The tractor 1 lever hydraulic system must be locked in open position to give priority to 2 lever Grader control valve to operate Grader.

G67E – Two pipes to tractor with 3 lever control valve mounted on Grader with seat and seat belt for the operator. Levers 1 & 2 are for LH & RH and 3rd lever to adjust grading angle. The tractor 1 lever hydraulic system must be locked in open position to give priority to 2 lever Grader control valve to operate Grader.

G67F – Two pipes to tractor with 4 lever control valve mounted on Grader with seat and seat belt for  the operator. Levers 1 & 2 are for LH & RH, 3rd lever to adjust grading angle. The 4th lever is to adjust steering. The tractor 1 lever hydraulic system must be locked in open position to give priority to 4 lever Grader control valve to operate Grader.

G67G – Four pipes to tractor, use tractor 2 lever hydraulic system to operate Grader same as G47A Grader.
This model got a removable level attachment between the wheels to lock Grader into a level position. There are two shutoff valves mounted on the Grader that must be open in this mode, and the blade angle must be set to 90˚ in relation to the drawbar. With all 4 pipes plugged into the tractor any one of the tractor control levers can operate the Grader up and down and it will always stay in a level position for land levelling. This grader can be converted to a road Grader by removing the level attachment and close the two shutoff valves.

G67H – This Grader is identical to the G67G, it only got a 2 lever control valve on the pipes like the G67B.

G67J – This Grader is identical to the G67C, it only got a 3 lever control valve on the pipes like the G67B. This unit is ideal for older tractors with only a 2 lever hydraulic bank.

Optional Extras:
Tandem Wheels
Side plates

Blade width: 3800 mm
Cutting angles:  90°, 80°, 70°, 60°, 50°, 40°
Moldboard height:  790 mm
Cutting edge width:  200 mm
Transport length: 6000 mm
Nominated kW:  80 to 200
Tires:  Standard models:  12.5/80-18   12 Ply.     Tandem Models: 10.5/80-18  10 Ply

Model No Description Number of Pipes to Tractor Average Tractor Req. (kW) Mass (kg) Working Width (m)
G67A Standard Grader, driver operate Grader 4 80 – 200 4,300 3.80
G67B With Control Valve 2 80 – 200 4,300 3.80
G67C With Hydraulic Blade Turn, driver operate Grader 6 80 – 200 4,500 3.80
G67D With Control Valve and Seat 2 80 – 200 4,400 3.80
G67E With Control Valve, Seat and Hydraulic Blade Turn 2 80 – 200 4,500 3.80
G67F With Control Valve, Seat, Hydraulic Turn &  Hydraulic Steering 2 80 – 200 4,500 3.80
G67G With Level Attachment 4 80 – 200 4,400 3.80
G67H With Level Attachment and Control Valve 2 80 – 200 4,400 3.80
G67J With Hydraulic Blade Turn and Control Valve 2 80 – 200 4,500 3.80
